It can be widely used in flame retardant of Polypropylene homopolymer and low ethylene content(≤8%) PP Copolymer.
With a low volume of addition(1-2%) and excellent performance of resisting plate-out, it is unnecessary to add antimonous
oxide. The PP should be used to socket, Automobile corrugated pipe, framework of electric appliance and shell of fan heater.
I. Main Features
1. Reaching UL94 V-2 of flame retardant rating with low volume of addition: 1.0-1.5% of Polypropylene homopolymer, 2.0-3.0%
of low ethylene content PP Copolymer.
2. Talcum powder, Barium sulfate and other inorganic filler(10-20%) are optional as additions.
3. Antimonous oxide is unnecessary. No heavy metal.
4. After baking for 300hoursat 70-80℃, the PP flame retardant produced with FR-NPB-H001, has excellent performance of resisting
plate-out, mobility, light and heat.
5. Meets the requirement of IEC60695-2-13 GWIT 775℃(3.0mm) and IEC60695-2-12 GWFI 960℃(3.0mm).
6. The PP flame retardant produced with FR-NPB-C001 can meet the requirement of RoHS and REACH.
II. Quality Index

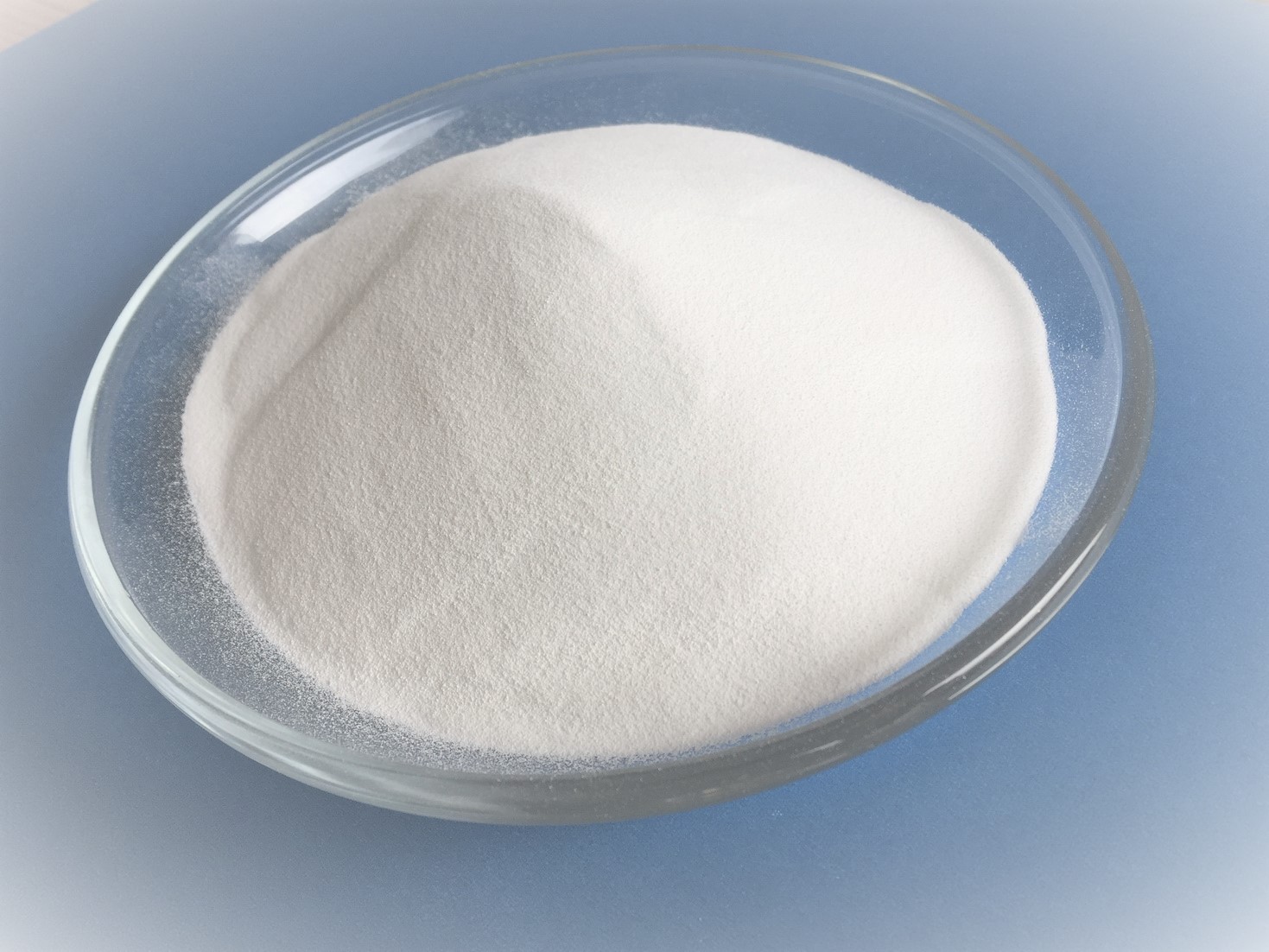

1. Appearance: Superfine white powder
2. Loss on drying: ≦0.5%
3. Decomposition temperature TGA（2%）：260℃
Ⅲ. Toxicity
1. LD50(Orally taken by Laboratory rat)>5300mg/kg(non-toxic)
2. Potential carcinogenicity：NO
3. Skin irritation：NO
Ⅳ. Chief Application
Sheet 1: System of No-filler PP flame retardant
|
Test Item |
Test Standard |
Unit |
1 |
2 |
|
Polypropylene Homopolymer |
Low ethylene content (≤8%) PP Copolymer |
|||
|
1.0-2.0％flame retardant |
2.0-3.0％flame retardant |
|||
|
Density |
ISO 1183 |
g/cm3 |
0.91 |
0.91 |
|
Melt Flow Index |
ISO 1133 |
g/10min |
13.5 |
12.1 |
|
Tensile Strength |
ISO 527 |
Mpa |
32 |
26 |
|
Elongation at Break |
ISO 527 |
% |
50 |
80 |
|
Bending Modulus |
ISO 178 |
Mpa |
1400 |
1250 |
|
Bending Strength |
ISO 178 |
Mpa |
36 |
32 |
|
Notch Impact Strength |
ISO 180 |
KJ/m2 |
3.5 |
8.0 |
|
Flame Retardant Rating |
UL94 |
3.20mm |
V-2 |
V-2 |
|
Flame Retardant Rating |
1.60mm |
V-2 |
V-2 |
Sheet 2: System of PP flame retardant filler
|
Test Item |
Test Standard |
Unit |
1 |
2 |
|
PP+20%BaSO4 |
PP+20%Talc |
|||
|
2.0-3.0％H001 |
2.5-3.5％H001 |
|||
|
Density |
ISO 1183 |
g/cm3 |
1.06 |
1.06 |
|
Melt Flow Index |
ISO 1133 |
g/10min |
14.0 |
13.0 |
|
Tensile Strength |
ISO 527 |
Mpa |
30 |
30 |
|
Elongation at Break |
ISO 527 |
% |
30 |
30 |
|
Bending Modulus |
ISO 178 |
Mpa |
1450 |
1700 |
|
Bending Strength |
ISO 178 |
Mpa |
38 |
40 |
|
Notch Impact Strength |
ISO 180 |
KJ/m2 |
3.0 |
3.0 |
|
Flame Retardant Rating |
UL94 |
3.20mm |
V-2 |
V-2 |
|
Flame Retardant Rating |
1.60mm |
V-2 |
V-2 |
|
|
Glowing Filament(GWIT) |
IEC 60695-2-13 |
℃(2.0mm) |
775 |
775 |
|
Glowing Filament(GWIT) |
IEC 60695-2-12 |
℃(2.0mm) |
960 |
960 |
Ⅴ. Notes
1. Avoid Calcium Carbonate filler, which can interfere flame retarding feature.
2. Accurate temperature control is required to avoid local overheating and causing volatilization in advance. Suggested
processing temperature: 170-170-170-170-180-180-180- 180℃
3. A little polypropylene powder is suggested as additive for uniform mixing and dispersing.
4.Assembled screw elements should use weak shear to avoiding degrading of material.
Ⅵ. Packaging
Paper-poly or PP woven bag: 25kg/pack
Remarks: low ethylene content(≥8%) Copolymer PP, such as: PP SP179, PP K9010 and PP AW19 etc.
